Caution

I am not responsible for anything happened to your device do at your own risk!

FaultX

Xiaomi Redmi Note 10 Pro (sweet)

Released March 2021

Spesification
SoC Qualcomm SM7150-AC Snapdragon 732G
RAM 6/8 GB
CPU Octa-core Kryo 470 2 x 2.3 GHz + 6 x 1.8 GHz
Architecture arm64
GPU Qualcomm Adreno 618
Network 2G GSM, 2G CDMA, 3G UMTS, 4G LTE
Storage 64/128/256 GB, UFS 2.2
SD card Up to 512 GB
Screen 6.67 in (169.42 mm), 2400x1080 (394 PPI), AMOLED (max. 120 Hz)
Bluetooth 5.1 with A2DP + aptX HD
Wi-Fi 802.11 a/b/g/n/ac
Peripherals 3.5mm jack, A-GPS, Accelerometer, Compass, Dual SIM, FM radio, Fingerprint reader, BeiDou, Galileo, GLONASS, GPS, Gyroscope, IR blaster, Light sensor, NFC, Ultrasound, proximity sensor, USB OTG
Cameras 108 MP, LED flash, 8 MP (ultrawide) LED flash, 5 MP (macro) LED flash, 2 MP (depth) LED flash, 16 MP, No flash
Dimensions 164 mm (6.46 in) (h), 76.5 mm (3.01 in) (w), 8.1 mm (0.32 in) (d)
Battery Non-removable Li-Po 5020 mAh

Table of Contents


Forum

XDA - Redmi Note 10 Pro

Telegram Group Telegram Channel
Indonesia Indonesia
Global Global
Global (Photography) GCam and XMLs
FaultX

Download MIUI Official ROMs

Device   : Redmi Note 10 Pro
Codename : sweet
----------------------------------
Device   : Redmi Note 10 Pro Max
Codename : sweetin
Region   : India

Warning

Make sure to download exact firmware for your model. You can discern your model from Settings > About phone > MIUI version (Eg: In MIUI version V14.0.9.0.TKFMIXMMI’ represents your phone region, which is Global).

Note

If you are currently or previously using a ROM/Custom ROM (AOSP) and want to flash MIUI to MIUI 14/13/12, I recommend doing this . The goal is to ensure that when you're on MIUI, you won't encounter a message like this: "Find Device storage corrupt. Your device is unsafe now."

Caution

Make sure the file name is "SWEET" and not "SWEETK6A".

Redmi Note 10 Pro (SWEET) : miui_SWEETGlobal_V14.0.8.0.TKFMIXM_3e19ed98ed_13.0.zip

Redmi Note 12 Pro 4G (SWEETK6A) : miui_SWEETK6AGlobal_V14.0.5.0.THGMIXM_0ee8974df3_13.0.zip

Flashing the wrong file may damage your device or cause it to brick.

GLOBAL (MI)
Region Branch Android Type Size Link Mirror
MIUI 14
V14.0.9.0.TKFMIXM GLOBAL STABLE 13.0 Recovery (.zip) 4.08 GB Download OD
V14.0.8.0.TKFMIXM GLOBAL STABLE 13.0 Recovery (.zip) 4.1 GB Download OD
V14.0.8.0.TKFMIXM GLOBAL STABLE 13.0 Fastboot (.tgz) 7.1 GB Download OD
MIUI 13
V13.0.18.0.SKFMIXM GLOBAL STABLE 12.0 Recovery (.zip) 3.4 GB Download -
V13.0.18.0.SKFMIXM GLOBAL STABLE 12.0 Fastboot (.tgz) 6.0 GB Download -
MIUI 12
V12.5.9.0.RKFMIXM GLOBAL STABLE 11.0 Recovery (.zip) 3.1 GB Download -
V12.5.9.0.RKFMIXM GLOBAL STABLE 11.0 Fastboot (.tgz) 5.7 GB Download -
EUROPE (EU)
Region Branch Android Type Size Link Mirror
MIUI 14
V14.0.9.0.TKFEUXM EUROPE STABLE 13.0 Recovery (.zip) 4.0 GB Download OD
V14.0.9.0.TKFMIXM EUROPE STABLE 13.0 Fastboot (.tgz) 6.5 GB Download OD
MIUI 13
V13.0.17.0.SKFEUXM EUROPE STABLE 12.0 Recovery (.zip) 3.4 GB Download -
V13.0.17.0.SKFEUXM EUROPE STABLE 12.0 Fastboot (.tgz) 5.8 GB Download -
MIUI 12
V12.5.7.0.RKFEUXM EUROPE STABLE 11.0 Recovery (.zip) 3.2 GB Download -
V12.5.7.0.RKFEUXM GLOBAL STABLE 11.0 Fastboot (.tgz) 5.7 GB Download -
RUSSIA (RU)
Region Branch Android Type Size Link Mirror
MIUI 14
V14.0.2.0.TKFRUXM RUSSIA STABLE 13 Recovery (.zip) 4.0 GB Download OD
V14.0.2.0.TKFRUXM RUSSIA STABLE 13 Fastboot (.tgz) 6.3 GB Download OD
MIUI 13
V13.0.10.0.SKFRUXM RUSSIA STABLE 12 Recovery (.zip) 3.3 GB Download -
V13.0.10.0.SKFRUXM RUSSIA STABLE 12 Fastboot (.tgz) 5.4 GB Download -
MIUI 12
V12.5.7.0.RKFRUXM RUSSIA STABLE 11 Recovery (.zip) 3.1 GB Download -
V12.5.7.0.RKFRUXM RUSSIA STABLE 11 Fastboot (.tgz) 5.2 GB Download -
TURKEY (TR)
Region Branch Android Type Size Link Mirror
MIUI 14
V14.0.2.0.TKFTRXM TURKEY STABLE 13 Recovery (.zip) 4.0 GB Download OD
V14.0.2.0.TKFTRXM TURKEY STABLE 13 Fastboot (.tgz) 5.9 GB Download OD
MIUI 13
V13.0.7.0.SKFTRXM TURKEY STABLE 12 Recovery (.zip) 3.3 GB Download -
V13.0.7.0.SKFTRXM TURKEY STABLE 12 Fastboot (.tgz) 5.2 GB Download -
MIUI 12
V12.5.6.0.RKFTRXM TURKEY STABLE 11 Recovery (.zip) 3.1 GB Download -
V12.5.6.0.RKFTRXM TURKEY STABLE 11 Fastboot (.tgz) 4.7 GB Download -
INDONESIA (ID)
Region Branch Android Type Size Link Mirror
MIUI 14
V14.0.2.0.TKFIDXM INDONESIA STABLE 13 Recovery (.zip) 4.0 GB Download OD
V14.0.2.0.TKFIDXM INDONESIA STABLE 13 Fastboot (.tgz) 6.2 GB Download OD
MIUI 13
V13.0.9.0.SKFIDXM INDONESIA STABLE 12 Recovery (.zip) 3.3 GB Download OD
V13.0.9.0.SKFIDXM INDONESIA STABLE 12 Fastboot (.tgz) 5.4 GB Download OD
MIUI 12
V12.5.5.0.RKFIDXM INDONESIA STABLE 11 Recovery (.zip) 3.1 GB Download OD
V12.5.5.0.RKFIDXM INDONESIA STABLE 11 Fastboot (.tgz) 4.8 GB Download OD
TAIWAN (TW)
Region Branch Android Type Size Link Mirror
MIUI 14
V14.0.4.0.TKFTWXM TAIWAN STABLE 13 Recovery (.zip) 3.9 GB Download OD
V14.0.4.0.TKFTWXM TAIWAN STABLE 13 Fastboot (.tgz) 5.4 GB Download OD
MIUI 13
V13.0.8.0.SKFTWXM TAIWAN STABLE 12 Recovery (.zip) 3.3 GB Download -
V13.0.8.0.SKFTWXM TAIWAN STABLE 12 Fastboot (.tgz) 4.6 GB Download -
MIUI 12
V12.5.2.0.RKFTWXM TAIWAN STABLE 11 Recovery (.zip) 3.1 GB Download -
V12.5.2.0.RKFTWXM TAIWAN STABLE 11 Fastboot (.tgz) 4.2 GB Download -
INDIA (IN) Redmi Note 10 Pro / Pro Max India
Region Branch Android Type Size Link Mirror
MIUI 14
V14.0.1.0.TKFINXM INDIA STABLE 13 Recovery (.zip) 3.9 GB Download OD
V14.0.9.0.TKFMIXM INDIA STABLE 13 Fastboot (.tgz) 4.6 GB Download OD
MIUI 13
V13.0.10.0.SKFINXM INDIA STABLE 12 Recovery (.zip) 3.2 GB Download -
V13.0.10.0.SKFINXM INDIA STABLE 12 Fastboot (.tgz) 4.0 GB Download -
MIUI 12
V12.5.10.0.RKFINXM INDIA STABLE 11 Recovery (.zip) 3.0 GB Download -
V12.5.10.0.RKFINXM INDIA STABLE 11 Fastboot (.tgz) 3.7 GB Download -

MIUI Debloated

Note

Make sure your computer has adb-fastboot (drivers) installed.

List App name to Debloated
- Analytics
- App Vault
- Analytics
- App Vault
- Backup
- Browser
- Calculator
- Calendar
- CatchLog
- Compass
- Digital Wellbeing
- Facebook
- Feedback
- GetApps
- Google App
- Google Assistant
- Google Chrome
- Google One
- HybridAccessory
- Joyose
- MSA
- Market Feedback Agent
- MiCalendar
- MiConnectService
- MiPlayClient
- MiCredit
- MiDrop
- MiPay
- MiShare
- MiVideo
- Music
- Notes
- PartnerBookmarks
- Services & feedback
- SoterService
- WMService
- Yellow Pages
- YouTube
- Email
- Google Lens
- Healt
- Mi Mover
- Mi Browser
- Game Center
- Etc
Download
  • Windows user = run .bat
  • Linux/macOS user = $ chmod +x .sh
Windows Linux/MacOS
MIUI 12 MIUI 12
MIUI 13-14 MIUI 13-14

Xiaomi Debloat Tool

Mi Unlock Tools

Caution

Unlocking the bootloader will erase all data on your device! Before proceeding, ensure the data you would like to retain is backed up to your PC or your Google account, or equivalent.

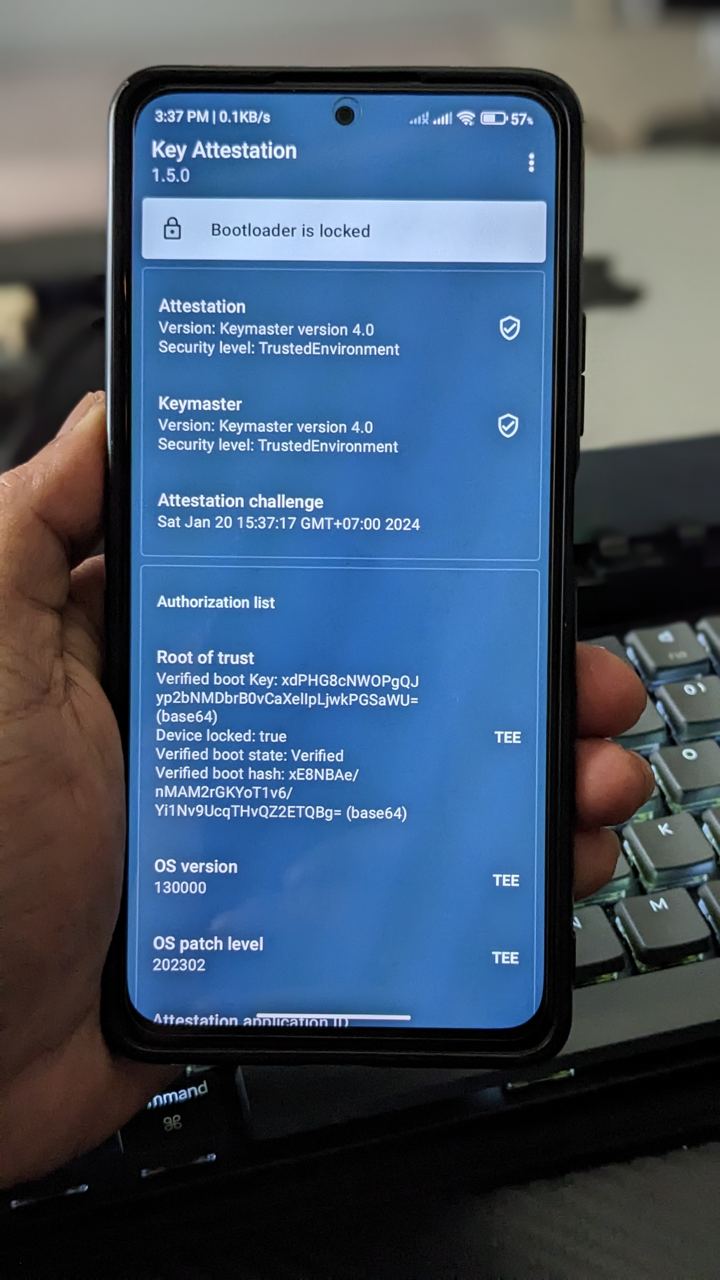

Relock Bootloader

Warning

  • Relocking will wipe your data (factory reset).
  • If the ROM does not match,relocking may brick your phone (bootloop or hard brick).
  • Back up all your data beforehand.
  • Charge your battery to at least 50%.

Steps to Relock the Bootloader

  1. Install Official MIUI Fastboot ROM:

    • Download the fastboot version of MIUI ROM for your device (.tgz format). Use this to ensure your system is clean and official.
    • Extract file .tgz
  2. Download and Install Mi Flash Tool

  3. Enter Fastboot Mode:

    • Power off your phone.
    • Hold Volume Down + Power until the Fastboot screen appears.
  4. Connect Your Phone to the PC via USB.

  5. Open Mi Flash Tool and Click Select and choose the extracted folder of the fastboot ROM.

  6. At the bottom of the tool, choose “clean all and lock” if you want to "lock the bootloader", and all data will be erased

    • clean all: All data and apps will be erased, but the bootloader will remain unlocked.
    • save user data: Your data will remain safe, but apps will be removed (factory reset), and the bootloader will remain unlocked.
    • clean and lock: All data and apps will be erased (clean install), and the bootloader will be locked.
      Screenshot


  7. Click Flash and wait for the process to complete.

MiFlash Tool

Version Link
20181115 Download
20200314 Download

ADB & Fastboot

Android platform tools

Erase System Dynamic Partition

Step to Erase System Dynamic Partition

  • Boot custom recovery (TWRP/Orangefox)
  • Enter the reboot menu
  • Choose fastboot reboot

Run this command (cmd-windows):

  • fastboot erase vendor
  • fastboot erase system

Custom Recovery

Android Version Recovery Maintainer Link
11 - 12 TWRP Official Nebrassy Download
11 - 12 OrangeFox Official Royal_King_0 Download
12 - 13 KewL TWRP Pulkit Download
12 - 13 TWRP Unofficial Aryan Download
12 - 13 OrangeFox Unofficial Aryan Download
14 - 15 OrangeFox Unofficial Aryan Download

Install TWRP (Permanent) MIUI

Note

Make sure your computer has adb-fastboot (drivers) installed.

  1. Download:
  2. Turn off your phone. Enter fastboot mode by pressing and holding the Power button + Volume Down button simultaneously. Keep holding them until you enter fastboot mode, then release.
  3. Once you're in fastboot mode, connect your phone to your PC using a USB cable.
  4. Open CMD and type the command:
    fastboot devices
    Then press Enter. Make sure your device ID appears, which means your device is detected. If it's not detected, you need to reinstall the adb-fastboot drivers correctly.
  5. To install TWRP, use the command:
    fastboot flash recovery (drag & drop the twrp .img file) then press Enter.
    Example: fastboot flash recovery twrp-3.7.1_12-0-sweet.img
  6. Reboot the device to Recovery Mode by pressing and holding the Power + Volume Up buttons. When the 'MI' logo appears, release the Power button immediately.
  7. Once you're in TWRP, flash the OrangeFox (.zip) file that you saved to your SDCard.
  8. Done!

Firmware

Device   : Redmi Note 10 Pro
Codename : sweet
----------------------------------
Device   : Redmi Note 10 Pro Max
Codename : sweetin
Region   : India
Firmware Only Size
Download 80 MB±
Firmware + Vendor Size
Download 700 MB±

Install ROM

Caution

  • Back up all your data beforehand.
  • Your data will be deleted (factory reset).
  • Charge your battery to at least 50%.
  • If the ROM does not match, maybe brick your phone (bootloop or hard brick).
  • If you are currently or previously using a ROM/Custom ROM (AOSP) and want to flash MIUI to MIUI 14/13/12, I recommend doing this . The goal is to ensure that when you're on MIUI, you won't encounter a message like this: "Find Device storage corrupt. Your device is unsafe now."

Install Official MIUI / Custom ROM AOSP via Custom Recovery (OrangeFox)

MIUI

PixelOS

LineageOS Official

LineageOS (Official)

LineageOS Android Distribution

A free and open-source operating system for various devices, based on the Android mobile platform.

GApps (Google Apps)

Caution

Make sure to install the GApps package that matches your device's Android OS version.
Architecture: arm64.

Android 11 Android 12 Android 13 Android 14 Android 15 Android 16
MindTheGapps - - Download Download Download Download
NikGApps Download 12.0 - 12.1 Download - crDroid Download - crDroid Download - crDroid Download - crDroid
BiTGApps Download Download Download Download Download Download

Root

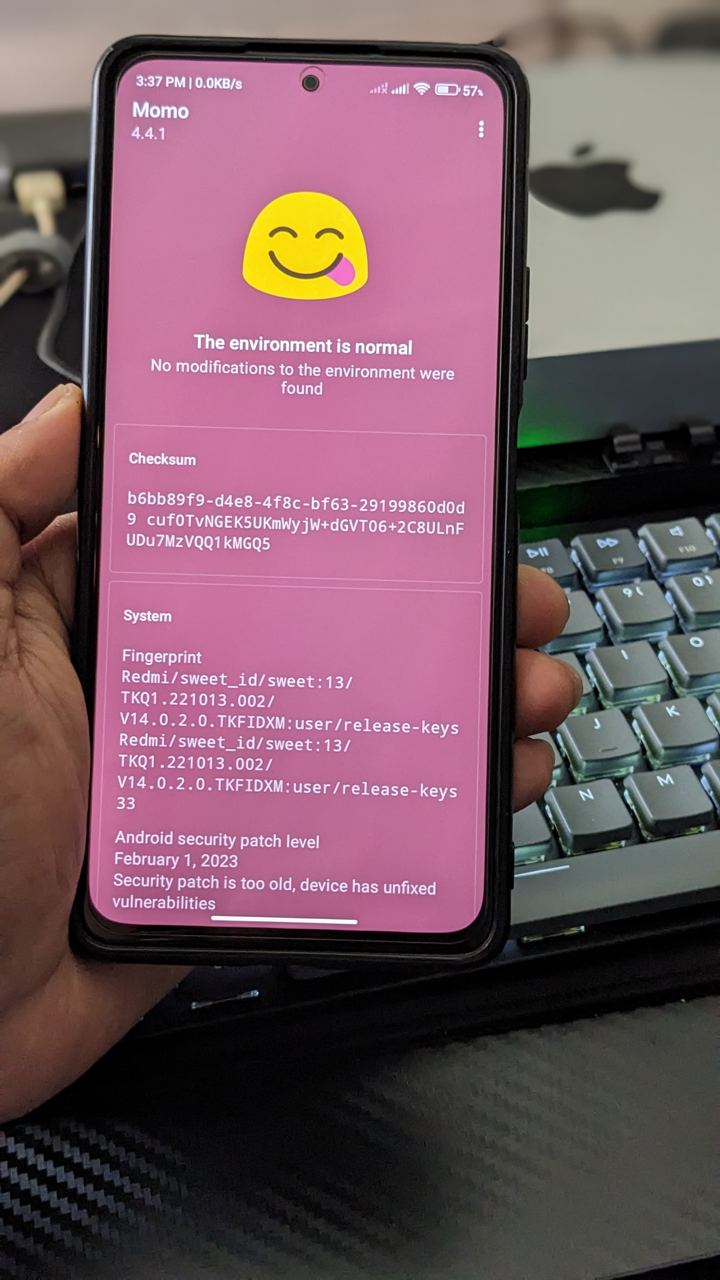

Play Integrity Fix

This module tries to fix Play Integrity and SafetyNet verdicts to get a valid attestation.

Pass Strong Integrity

Run Bank App on Android Root

Read

Custom ROM (sweet/sweetin)

AOSP (Android Open Source Project)
Status Maintainer Support Link
ArrowOS Official (Discontinued) Daniel Telegram Download-archive
BlissRoms Official Babu Frik Telegram Download
CarbonROM Official - - Download
Corvus OS Official (Discontinued) - - -
crDroid Official Pranav Vashi Telegram Download
dotOS Official Adarsh Grewal XDA Download
EvolutionX Official therealmharc Telegram - XDA Download - SF (archive)
HavocOS Official (Discontinued) - - Download-archive
LineageOS Official aryan & Daniel Telegram - XDA Download
LineageOS MicroG - - - Download
NusantaraProject Official BMW Telegram Download
Pixel Experience Official (Discontinued) Pulkit Agarwal Telegram Download
PixelOS Official Aryan Telegram Download
PixelOS - Kali NetHunter Unofficial wvthoog XDA Download - Mirror01 - Mirror02
PixelPlusUI Official Pavan Padamata Telegram - XDA Download
ProjectElixir Official @pure_soul_kk Telergam Download
Project Matrixx Official Musafir02 Telegram Download
Project Pixelage Official Zohaib Telegram Download
Project-Xtended Official (Discontinued) - - Download
ThePixelProject Official Jan Telegram Download
VoltageOS Official Mr Fox Telegram Download
MIUI Base
Support MIUI Android Download
Xiaomi EU Team - MIUI 14 (V14.0.1.0) 13 Download
MIUI 13 (V13.0.18.0) 12 Download
MIUI 12 (V12.5.9.0) 11 Download

Fix "Find Device storage corrupt"

Warning

Do With Your Own Risk!!

"Find Device storage corrupt. Your device is unsafe now"

Method 1
Method 2

Root Required, Testing from AOSP 14 to MIUI

Before Flashing MIUI ROM!!

  • Delete all contents of the "fdsd" folder
    mnt/vendor/persist/fdsd

  • Reboot system
  • Reboot into TWRP/OrangeFox
  • Flash MIUI ROM
  • Done!

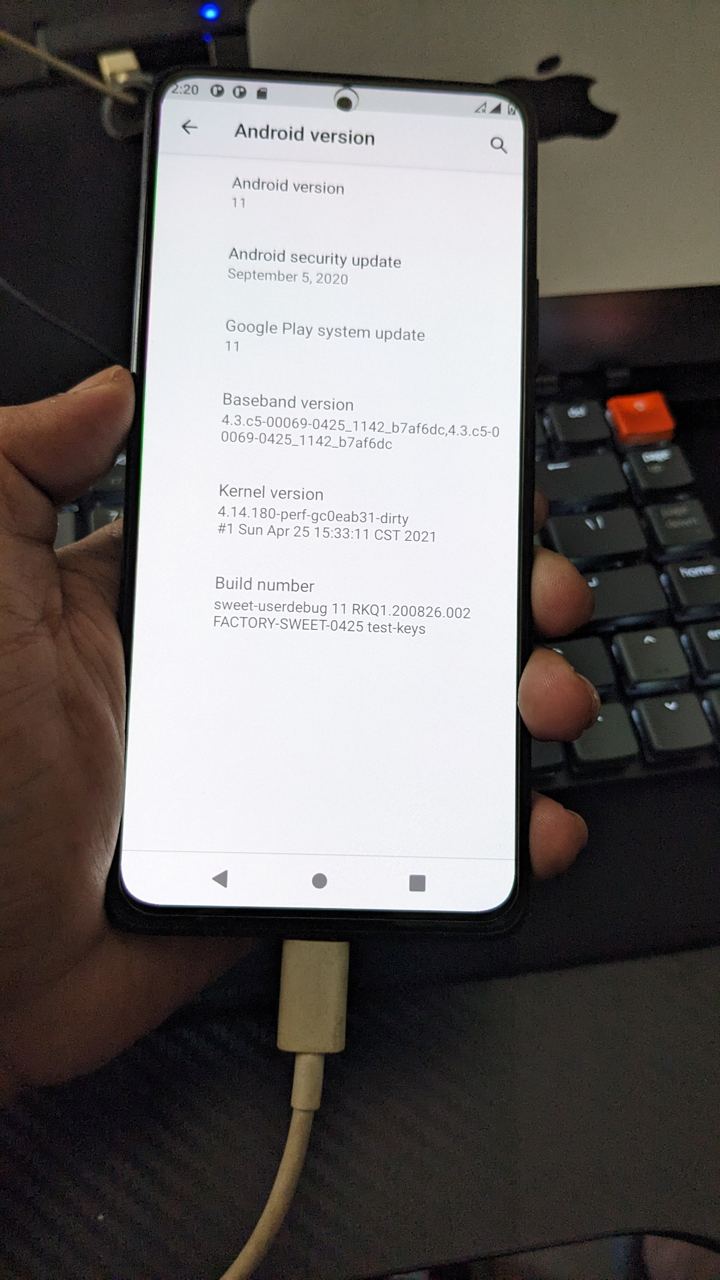

Engineering ROM

Engineering ROM is software installed on smartphones by the manufacturer for testing and verification purposes. Its function is to ensure that the device's hardware and software work properly, whether during the manufacturing process, repairs, or testing damaged components. Engineering ROM allows developers to test and fix the device before it is sold or reused.

Device   : Redmi Note 10 Pro
codename : sweet / sweetin

Download

Fix TEE Broken

Note

  • Private keybox.xml
  • Rename keybox.xml to sw.xml

Test: 19 Juni 2024

Picture Picture Picture Picture Picture Picture Picture
Fix TEE
  • Flash Engineering ROM using Miflash (flash all)
  • Enable Developer Options
  • Make sure the sw.xml file is located in the same folder.
  • Open CMD/Terminal and execute the command below.
    adb root

    adb remount

    adb reboot

    adb shell mkdir -p /data/nativetest64/qti_keymaster_tests/

    adb push sw.xml /data/nativetest64/qti_keymaster_tests/

    adb shell LD_LIBRARY_PATH=/vendor/lib64/hw KmInstallKeybox /data/nativetest64/qti_keymaster_tests/sw.xml sw true

  • If the message says: TEE done Installkeybox is done! , it means it's correct
  • Flash the Stock ROM MIUI using MiFlash (Flash all and lock)
  • Done

Thanks for chiteroman

Follow @faultx003

Splash screen creator

Redmi Note 10 Pro / Max

Screenshot


  • Splash screen creator Download

  • Splash screen for Redmi Note 10 Pro / Max Download

Optional

Etc

About

Documentation Xiaomi Redmi Note 10 Pro

Resources

License

Stars

Watchers

Forks

Contributors
